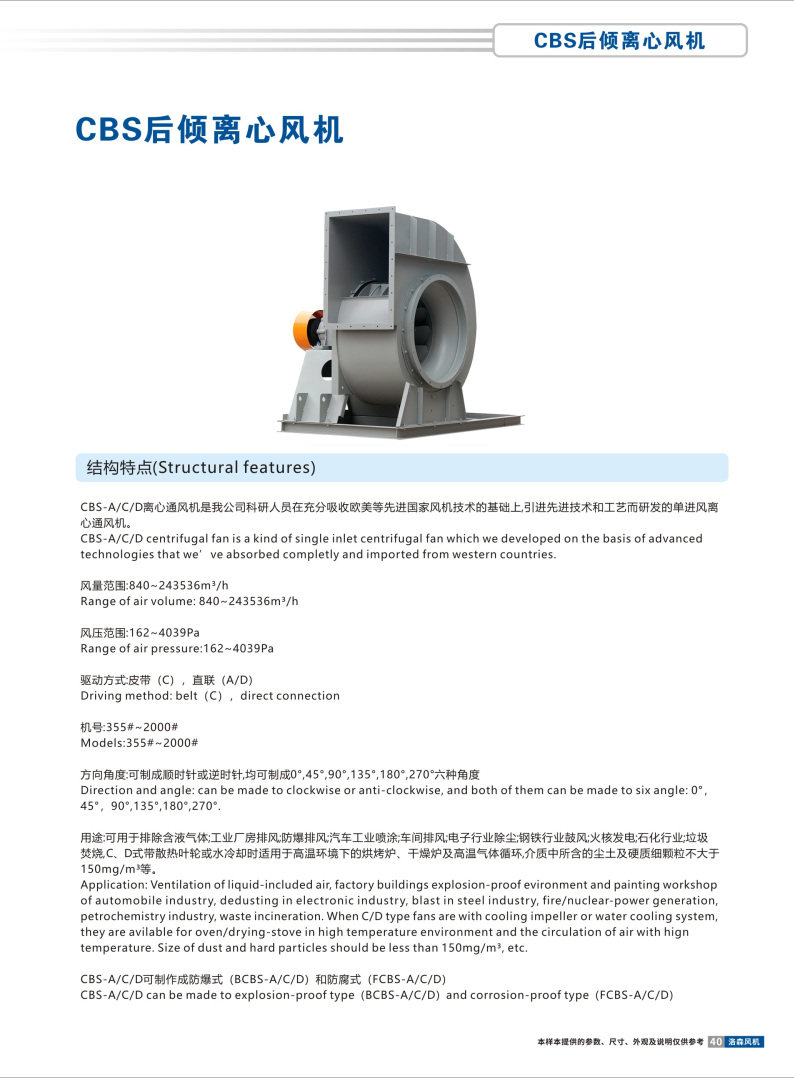

CBS后傾離心風機
概述
CBS-A/C/D離心通風機是我公司科研人員在充分吸收歐美等先進國家風機技術的基礎上,引進先進技術和工藝而研發的單進風離心通風機。
風量范圍:840~243536m3/h
風壓范圍:200~3800Pa
驅動方式:皮帶（C），直聯（A/D）
機號:355#~2000#
方向角度:可制成順時針或逆時針,均可制成0°,45°,90°,135°,180°,270°六種角度
用途:可用于排除含液氣體;工業廠房排風;防爆排風;汽車工業噴涂;車間排風;電子行業除塵;鋼鐵行業鼓風;火核發電;石化行業;垃圾焚燒,C、D式帶散熱葉輪或水冷卻時適用于高溫環境下的烘烤爐、干燥爐及高溫氣體循環,介質中所含的塵土及硬質細顆粒不大于150mg/m3等。
CBS-A/C/D可制作成防爆式（CBS-A/C/D）和防腐式（FCBS-A/C/D）
Summary
TDF-A/C/D centrifugal fan is a kind of single inlet centrifugal fan which we developed on the basis of advanced technologies that we’ve absorbed completly and imported from western countries.
Range of air volume: 700~224000 m3/h
Range of air pressure: 200~3800 Pa
Driving method: belt（C）， direct connection
Models:355#~2000#
Direction and angle: can be made to clockwise or anti-clockwise, and both of them can be made to six angle: 0°，45°，90°,135°,180°,270°.
Application: Ventilation of liquid-included air, factory buildings explosion-proof evironment and painting workshop of automobile industry, dedusting in electronic industry, blast in steel industry, fire/nuclear-power generation, petrochemistry industry, waste incineration. When C/D type fans are with cooling impeller or water cooling system, they are avilable for oven/drying-stove in high temperature environment and the circulation of air with hign temperature. Size of dust and hard
particles should be less than 150mg/m3, etc.
CBS-A/C/D can be made to explosion-proof type（CBS-A/C/D）and corrosion-proof type（FCBS-A/C/D）
