詳細介紹

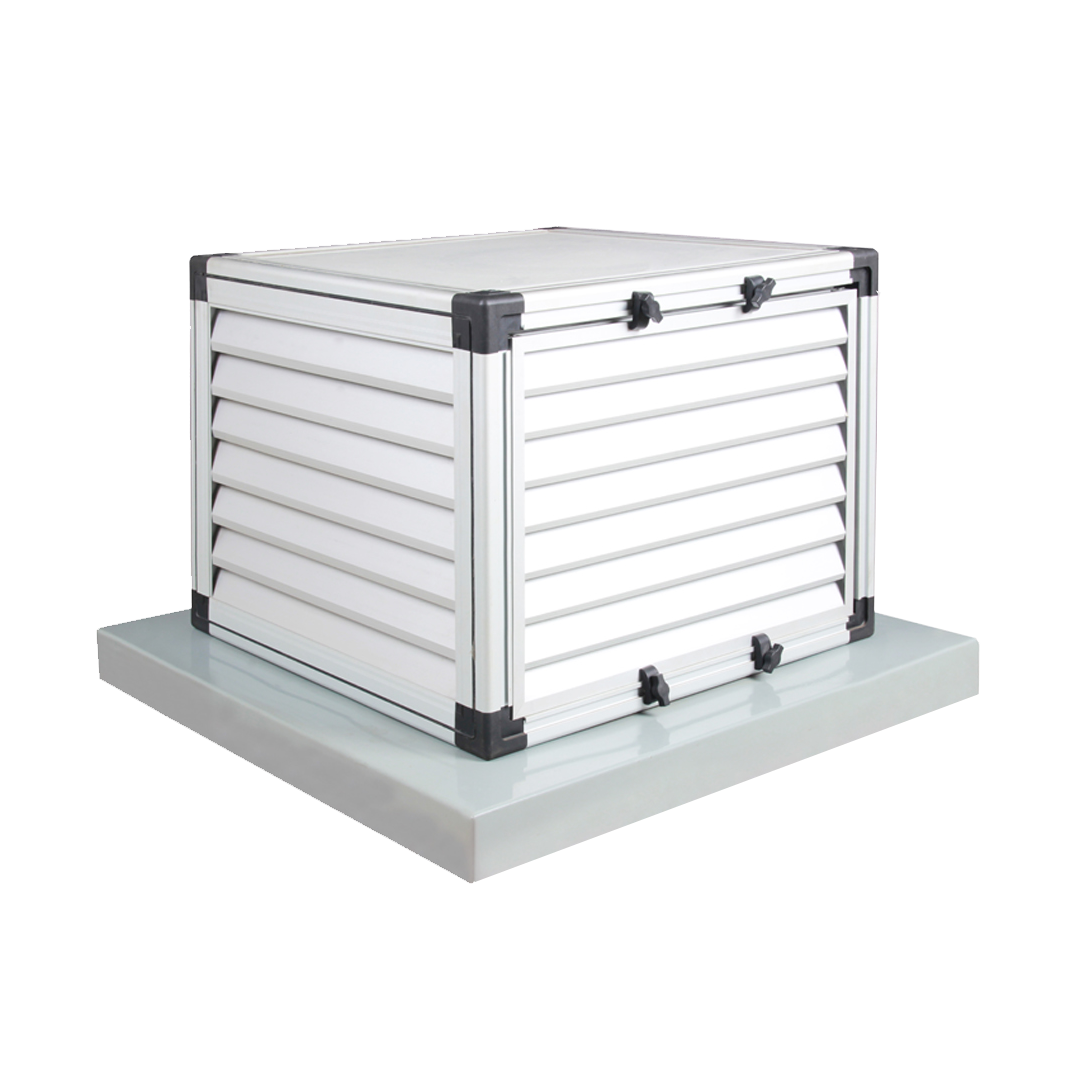

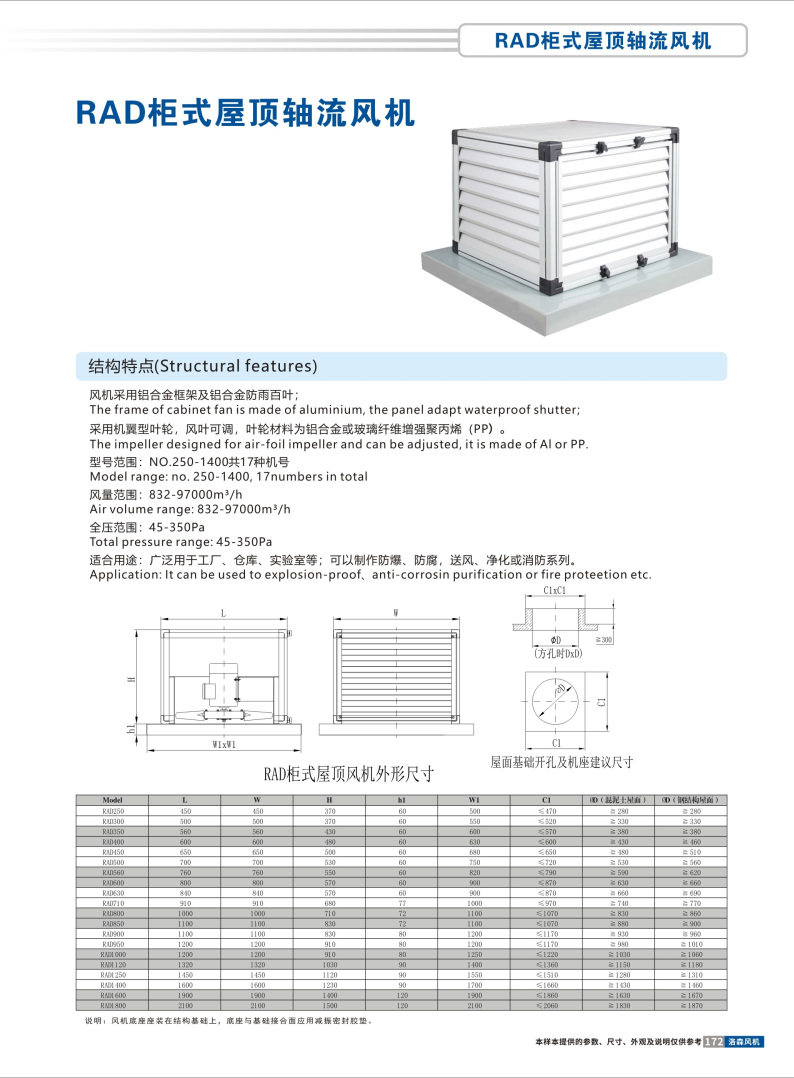

RAD柜式屋頂離心風機
結構特點:
Structural features:
風機采用鋁合金框架及鋁合金防雨百葉;
The frame of cabinet fan is made of aluminium, the panel adapt waterproof shutter;
采用機翼型葉輪,風葉可調,葉輪材料為鋁合金或玻璃纖維增強聚丙烯(PP)。
The impeller designed for air-foil impeller and can be adjusted, it is made of Al or PP.
型號范圍:NO.250-1400共17種機號
Model range: no. 250-1400, 17numbers in total
風量范圍:832-97000m3/h
Air volume range: 832-97000m3/h
全壓范圍:45-350Pa
Total pressure range: 45-350Pa
適合用途:廣泛用于工廠、倉庫、實驗室等;可以制作防爆、防腐,送風、凈化或消防系列。
Application: It can be used to explosion-proof、anti-corrosin purification or fire proteetion etc.
